SOLAR PUMP STATIONS
SunEarth offers a complete line of pump stations for residential, industrial, and commercial applications.
These all-in-one assemblies are pre-engineered to save time for installing contractors, reduce utilized space, and provide a professional finish that customers will notice and appreciate. The SunEarth line of Solar Pump Stations is all leak-tested units featuring fittings designed for the transfer of heat from the collector to the storage tank. Depending on the SolarStation a flow meter, temperature gauge(s), and fill and drain valves can be located within the unit.

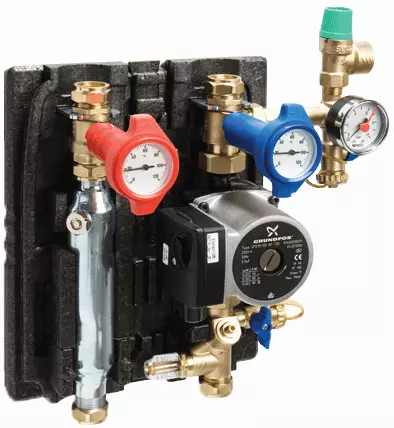

Solar Station
The SunEarth SolarStation is a simple, labor saving, attractive and economical solution.
Learn More

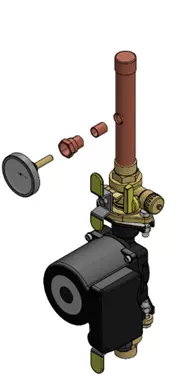

SolarStation-1Line
The SunEarth SolarStation-1Line is a preassembled and dependable solution providing excellent manufacturing quality while saving time and preventing unexpected installation delays.
Learn More

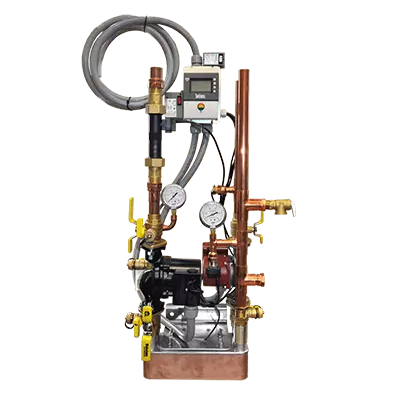

Solar Station XL
SunEarth’s SolarStation XL series are factory assembled utilizing only top tier components.
Learn More

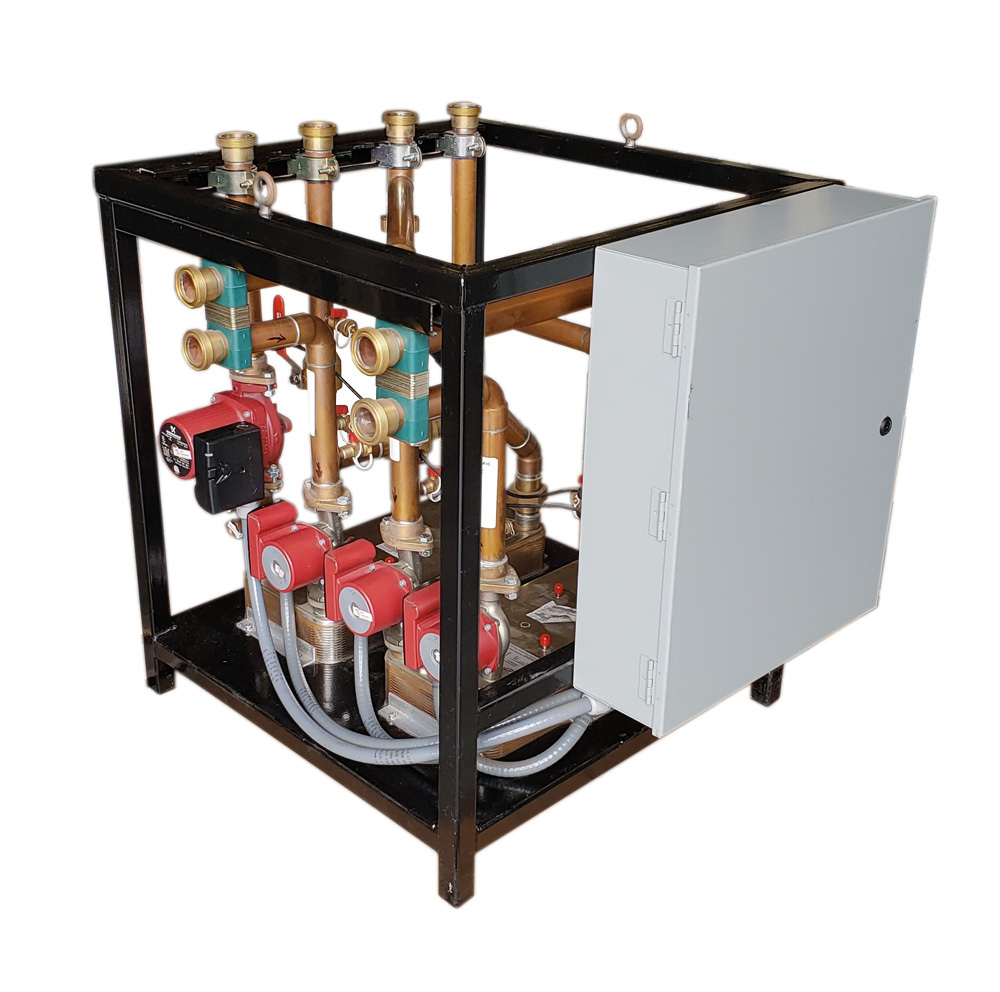

Solar Station XXL
Designed with multi speed pumps to ensure compatibility with a wide range of system configurations. The The SolarStation XXL is factory assembled using top tier components and is tested for hydraulic integrity to ensure a smooth installation every time.
Learn MoreHow Is Pipe Sizing Figured For Solar Stations?
Generally, for a residential solar station, like the Solar Station HX, the standard sizing for the pump starts from ¾ inch. For commercial applications, the Solar Station XL has a minimum pipe size of 1 inch and the Solar Station XXL has a minimum pipe size of 1 ½ inch. To fine tune the sizing of the pipe for your application, we recommend reaching out to us to learn more about the specifics of your project to determine the pipe size for your application.
How Do You Calculate the Pipe Size for a SunEarth Pump Station?
SunEarth has four basic types of pump stations. These four different types include the Solar Station, Solar Station HX, Solar Station XL, and the Solar Station XXL. The Solar Station is designed for residential use, and it uses 1 to 3 solar collectors. The pipe size for the Solar Station generally ranges from ½ inch to ¾ inch in a copper material to handle the 1 to 3 collectors. The Solar Station HX is primarily used for larger residential applications, and it is designed for 3 to 4 solar collectors. The pipe size is generally ¾ inch in copper. The Solar Station XL is used for commercial applications no larger than 720 sq ft. The pipe sizing for these solar stations range from 1 inch to 2 inches. The Solar Station XXL is designed for commercial projects ranging from 720 square feet to 3,000 square feet. The minimum pipe size is 1 ½ inches and it ranges to 3 inches.
